Sensor Devices
Register IoT temperature, humidity, and pressure sensors at /environmental/sensors for automatic environmental logging and excursion detection.
Sensor Devices (/environmental/sensors) connects IoT hardware to Clarix's environmental monitoring module. Registered sensors push temperature, relative humidity, and differential pressure readings automatically — reducing manual log entry and supporting continuous monitoring expectations under USP 797.
What sensor integration provides
| Capability | Benefit |
|---|---|
| Automatic T/H/pressure readings | Continuous data without manual transcription |
| Room assignment | Links each device to a classified area (ISO 5, ISO 7, etc.) |
| Excursion flagging | Out-of-range readings trigger QA notifications |
| Audit trail | Timestamped ingest history tied to calibrated device IDs |
Manual Temperature & Humidity logs at /environmental/temp-humidity remain available for walk-round readings and backup instruments.
Register a sensor
- Go to Environmental → Sensor Devices (
/environmental/sensors). - Click Add sensor.
- Enter a device name and external device ID from your sensor platform.
- Select the room this sensor monitors.
- Choose the sensor type (temperature, humidity, pressure, or combined).
- Save the device.
The device appears in the registry table with last reading time and status when data is flowing.
Integration setup

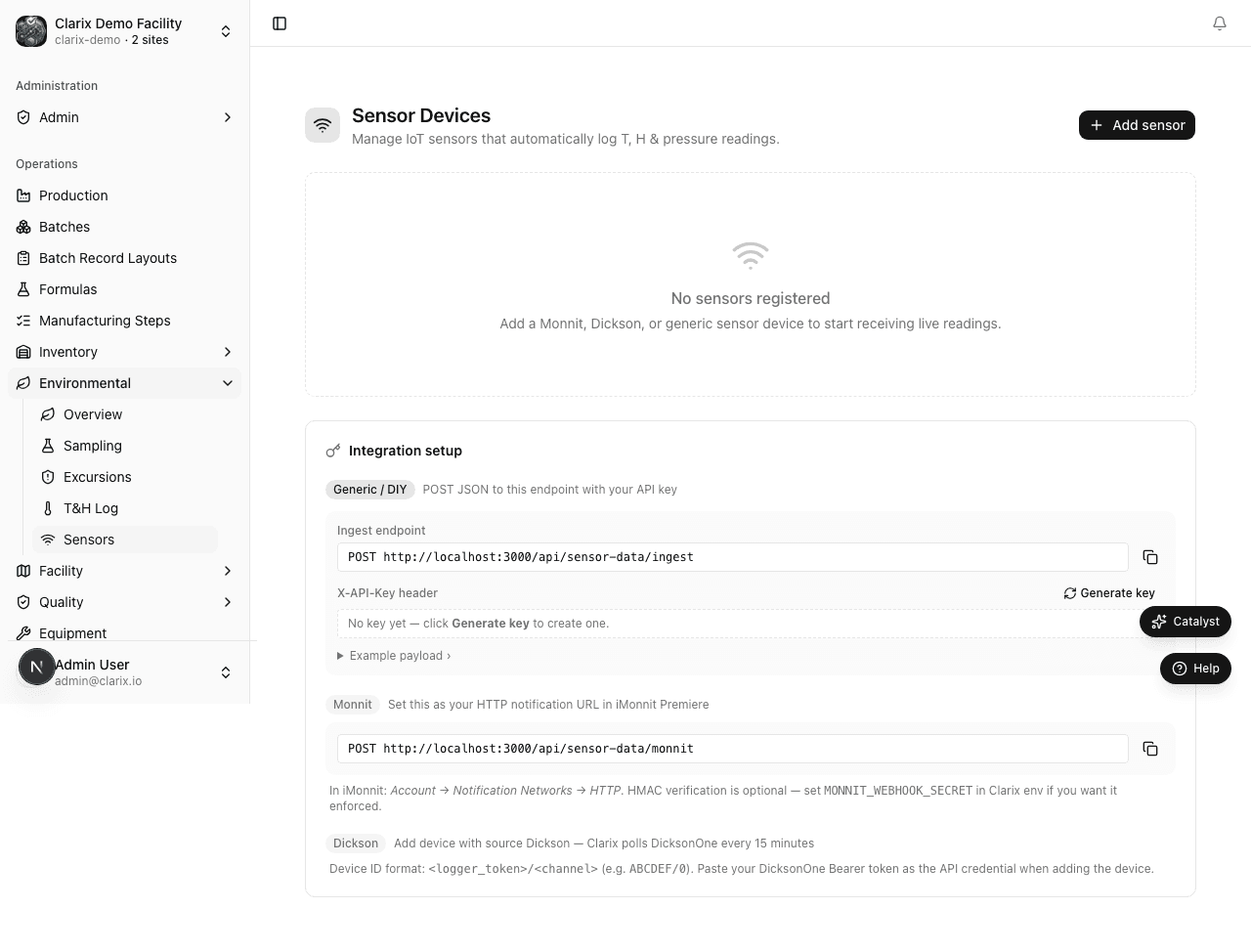

The page includes an Integration setup panel with:
- Your organization's ingest API key (rotate if compromised)
- The webhook URL to configure in Monnit, Dickson, or custom middleware
- Example payload format for testing
Point your sensor platform at the provided endpoint. Readings appear in the environmental log within seconds of ingest.
Supported platforms
Clarix supports common 503B monitoring hardware patterns:
- Monnit wireless sensors
- Dickson data loggers with cloud forwarding
- Generic HTTP ingest for custom integrations
Use the clarix-sensor-sim tool in development to push test readings against seeded demo devices.
Relationship to EM sampling
Sensor devices capture continuous environmental parameters (T, H, pressure). EM sampling (/environmental/sampling) covers viable and non-viable particulate monitoring with location-based sample records. Both feed excursion workflows and batch record EM sections.
Role requirements
| Action | Minimum role |
|---|---|
| View sensor registry | Viewer |
| Add or edit sensors | Environmental manager or Admin |
| View ingest API key | Admin |
| Rotate API key | Admin |
Regulatory reference
USP 797 (2023) — Facilities must monitor and maintain environmental conditions in compounding areas. Automated sensor logging supports documented evidence that classified areas remained within validated temperature and humidity limits during production.
